Products
Tractors
Tractor Features.
All our hydrostatic drive tractors can be fitted with various options to equip them to perform your individual tasks. There are many wheel and tyre options which include semi floatation, large balloon floatation, turf type along with dual and treble wheel combinations and cage wheels for bank work. Hourmeters are included on the engines so that service schedules can be maintained. All models feature a transmission free wheeling device which enables the operator to move the tractor by hand if the don’t wish to start the engine, very useful inside tight sheds or for positioning on trailers. Certain models have the option of electric starters instead of the usual pull start. The ability to work on steep ground is a Rapid speciality. Fitted with the correct wheel equipment, the Rapid hydrostatic drive tractor is safe to operate on the steepest of gradients giving the operator confidence to perform their task. Standard anti vibration damping gives all models excellent low vibration characteristics. Figures can be supplied.
Rapid Rex
7hp Subaru Robin petrol engine
more images
Hydrostatic drive
Hydraulic steering
89kgs
4 x 8 wheels standard
Dual, cage and sprocket wheels available
The Rex, the new baby Rapid, is suitable for grass cutting on extreme slopes.
More information to follow shortly. please contact you
nearest dealer

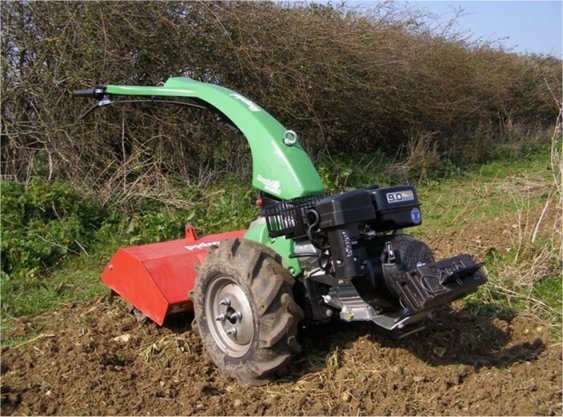

Rapid Mondo
9 hp petrol more images
Until the arrival of the Rex, The Mondo was the smallest and most compact tractor in the range. It was in fact, the smallest hydrostatic driven tractor in the world! It features a 9hp petrol engine, hydrostatic transmission and a totally independent PTO system. A tool free quick attach change system allows for many different attachments. The Mondo has no awkward transmission clutches or difficult gears to find but just the familiar Rapid twist grip control giving progressive forward and reverse travel. The handlebars are easily adjusted to suit the operator’s height keeping the machine comfortable to use.
This versatile tractor is suitable for use where space is
limited, maybe accessing gardens for landscapers or smallholders
through to large open spaces where a light weight tractor is
required in wet lands such as reed beds. When used with the correct
wheel type, such as dual or cage wheels, then the Mondo can be used
on steep ground for operations such a grass cutting or alternatively
with the single wheels set narrow, it’s ideal for jobs such as
rotavating. It’s able to perform all these tasks thanks to its
ability to work in two directions. The handlebars simply rotate,
allowing the drive wheels to be either behind the attachment for
jobs such as mowing or in front of the attachment for cultivation
jobs. Whichever way the handlebars are, the controls remain the same
making the Mondo a safe and easy tractor to operate.

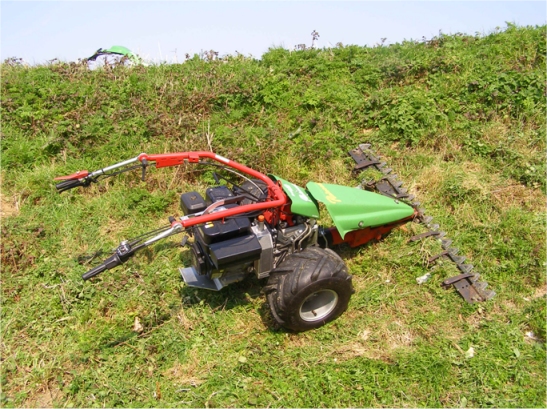

Rapid Swiss
9 hp Petrol
Specialist Bank Tractor
more images
top of page
This is produced by Rapid as a specialist bank tractor. It is the lightest walk behind tractor with active steering on the market. It is equipped with a 9 hp petrol engine to give optimum performance on steep gradients. It features hydrostatic drive and handlebar controlled steering by means of two independent wheel motors. It is specially designed to work on very steep slopes and can be fitted with various wheel options including steel sprocket wheels for the severest of conditions. It features an independent PTO system to keep the attachment drive constant regardless of forward speed and, of course, the Rapid twist grip hydrostatic transmission control.
The Swiss is a single direction tractor which is usually equipped with either a cutterbar or flail mower which can be changed swiftly by the tool free quick attach system.

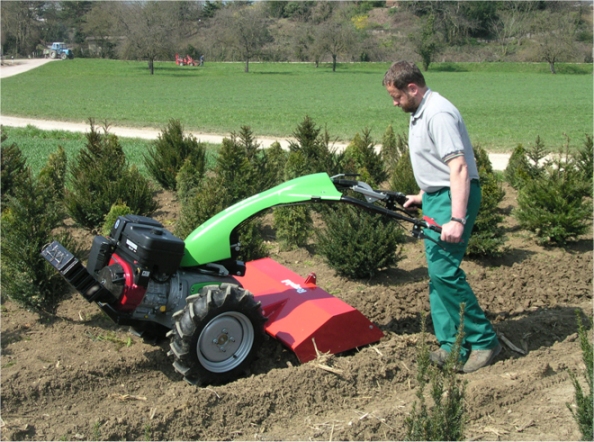

Rapid Universo
13hp petrol or 10.5 hp Diesel more images top of page
As the name suggests, this is our true all rounder. 13hp petrol or 10.5hp diesel engine, hydrostatic drive, active steering, two directional working, this is a professional machine for the professional operator. It features a two speed independent PTO giving speeds of 700rpm or 1000rpm so that you can match the attachments perfectly. It has the standard quick attach system and the Rapid twist grip transmission control. Steering is controlled by levers mounted underneath each side of the handlebars. As a two directional tractor, the handlebars turn through 230 degrees and are able to lock in an offset position. Rapid use their patented system called ‘Wendermatic’ to perform this which keeps the forward and reverse as well as the right and left hand steering controls the same, wherever the position of the handlebars. Obviously, this makes the machine much easier to use for the operator.
The Universo has the ability to perform in all areas whether it be rotavating or stone burying, grass cutting and flailing or haymaking with the mini round baler, this tractor is on top of its job. All this with the capability of performing each task on steep slopes if required.

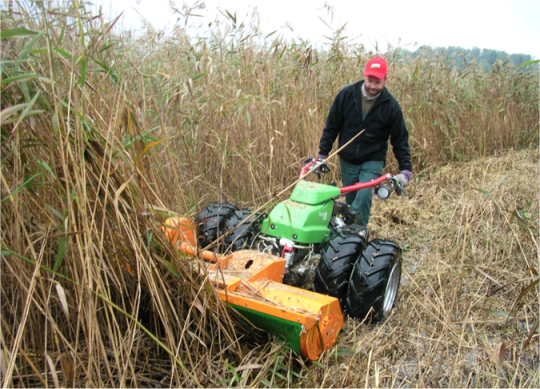

Rapid Euro
20 hp petrol or 10.5 hp Diesel more images top of page
The Rapid Euro is the most powerful of our range. It can be specified with either a 20hp twin cylinder petrol engine or with a 10.5hp diesel. It is a single direction tractor with hydrostatic drive. This is operated by the Rapid Twist grip control and steering is controlled by levers underneath the handlebars for left and right turns. An independent PTO system is standard giving two speeds of either 630rpm or 1000rpm and attachments are added or removed by the Rapid tool free quick attach system. As a single direction tractor, the Rapid Euro is suitable for jobs such as grass cutting, baling, or powering a woodchipper.
Attachments - Two Wheel
Cutterbars
A popular attachment for grass cutting where the grass is going to be used for forage feeds by means of round baling. Also used for cutting rough grass, brambles and material such as bracken or heather. We would normally only supply a double cut cutterbar as this gives better cutting ability and reduces the vibration levels from the cutting action. Standard sizes available from 97cm upto 216cm. Wider cutterbars available by request.
Flail / Finishing Mowers
Closed hood flail mower featuring large diameter rotors with swinging back to back type flails are our most popular. These all feature an adjustable roller to maintain even cutting height, multi vee belt drive and a safety over run clutch.
Safety Mulcher
This consists of a very high speed, helical type rotor with fixed blades mounted to it. All the material is placed back down on the ground without being thrown out from the machine. This is especially useful when working in a sensitive area such as near to highways or where you will be near to the public. Widths available from 70cms up to 120cms
Eco Mulchers
Available in either single or twin bladed versions with a working width from 80cms up to 122cms
Drum Mower
Two cylindrical mowing drums fitted with two blades per drum is ideal for grass mowing where the grass will be used for forage feeds. May also be used for rough grass cutting. Suitable for the Rapid Universo and Rapid Euro.
Hay Rake
This is a side sweeping band rake used for the rowing up of grass material and leaving a swath suitable for the mini round baler. Sizes available are from 150cms up to 220cm. Most popular size is the 180cms.
Mini Round Baler
Producing a bale of 500cm x 500cm and a weight of around 20kgs, the mini round baler is a compact version of the full size agricultural machines. Suitable for baling a wide range of material from hay and haylage through to bracken and heather.
Bale Wrapper
Used to seal the round bale for producing haylage or silage.
Rotavator
Available in two widths, 70cms to suit the Mondo or 90cms to suit the Universo/Euro. Featuring an adjustable hood which can be opened to give full access to the reversible rotor.
Power Harrow
The power harrows come complete with an adjustable net roller used to control the working depth. They are available in 75cm width for the Mondo and in 100cm width for the Universo/Euro.
Stoneburier
Available in 100cm working width and is suitable for the Universo and Euro models. It comes complete with a net roller for depth control.
Snow Blower
Available in three versions, for soft, semi hard and hard packed snow. Working widths are 70cm, 80cm and 100cm. Fully adjustable delivery spout and replaceable wear plates.
Leaf Vacuum
70cm and 100cm working width. Suitable for both dry and wet leaves. Collection is into a large collection bag
Wood Chipper
Drum type chipper c/w two full width blades. Adjustable chute. 80cm capacity.
Attachments - Four Wheel
Finishing Mowers
Heavy Duty finishing mowers are available in working widths from 1.2m (48”) up to 5.2m (17’). These can be front or rear mounted with the choice of rear or side discharge. Options available are a mulching kit, anti scalp roller and pneumatic tyres. The mowers of 3.6m (12’) and above are trailed machines with hydraulic folding. Power required is from 12hp up to 60hp.
Flail Mowers
We have three ranges of flail mowers featuring a range of working widths of 800cm up to 2.3m, flail type and weights. They come complete with Heavy Duty gearboxes with overrun, mechanical sideshift (not TTC) and rear roller. They can be front or rear mounted or fitted to out front mowers. Options include hydraulic sideshift, double skin hood and either Y or hammer flails. The 540 pto drive has shear bolt protection and power required is from 14hp up to 90hp.
Drum Mower
Our Drum Mowers can be front mounted, front or rear mounted and rear offset mounted. These can be used front and offset rear in combination. Front and rear machines work from 800cm up to 1150cm. Front only work from 1150cm up to 1550cm and offset rear mounted are from1000cm up to 1550cms. All feature 2 drums and 540pto with overrun. Power required is from 15hp to 35hp.
Sweepers
Driven by either PTO or hydraulically, these rotary type sweepers will operate straight, offset to the left or offset to the right. Front or rear mounted with either Cat1 or 2 linkage. Options include collector, kerb brush, mixed ppn/steel brush, hydraulic collector tip, dust suppression kit..
Wood Chipper
Tractor mounted / driven CPT 130 flywheel type chipper
This machine has a capacity rating of 130mm and a tractor
requirement from 30hp.
Hydraulically driven 160mm feed rolls with manual control for
forward/reverse. 600mm flywheel with 2 knives and 1 counter knife.
Large capacity folding intake hopper and a full 360 degree turning
delivery chute. Output, depending on material is 10 – 14cu/m/hr.
Weight is 450kgs. Option of a no stress auto feed system.
Rapid R-GO Compact Wood Chipper
Compact engine driven, R-GO CV 14, 18 and 18E
This is a full professional use narrow access machine. It has a capacity rating of between 80mm and 120mm. This 310mm drum type chipper has 2 full width knives and 1 counter knife. Power comes from either 14 or 18hp V twin Vanguard petrol engine, the latter having key start option. Both the wide intake hopper and delivery chute fold for complete access to the cylinder for adjustment and maintenance. Any blockage is easily cleared by external facility to reverse the drum. Output depending on material is 5-7cu/m/hr. Weight is just 195kgs and width is 720mm allowing this chipper to go through a standard doorway and balanced for one person to push it. Options are dual wheels and a 3 point linkage kit for tractor mounting.
Fertilizer Spreaders
Wide ranging models to suit all. Choose from steel or plastic hoppers, steel or stainless steel spreading discs, agitators, manual or hydraulic opening, hopper grids, hopper covers and also a salt spreading kit. Available in mounted and trailed versions. Hopper capacity is from 170kg up to 1000kg in conical or rectangular shape and spreading width is from 10m up to 18mts.
Cement Mixer
350 ltr capacity simple cement mixer. 540 pto drive and hydraulic tipping
Mini Round Baler
Fixed chamber variable density baler producing a bale of 500 x 520cm and about 20kgs weight. Can be used to bale hay, haylage, silage, rough conservation type grasses, bracken, plastic and many others. Gathering wheels, auto lube, net binding and bale kicker comes as standard. 540 pto drive Power required is from 15hp.
Mini Round Bale Wrapper
The mini bale wrapper is suitable to wrap 500 x 520 round bales using 250mm plastic stretch film. 2, 4 or 6 layers of film can be applied and comes complete with auto stop. 540 pto drive .
Power Harrows
Models available from a working width of 90cms up to 2.1m. Choice of either net, cage or packer rollers and the ability to fit seeders for one pass operating 540 pto drive with shear bolt protection. Power requirement is 20hp up to 65hp NB. Larger sizes of power harrows for agricultural use are available. Please ask!.
Rotavators
Heavy Duty design with strong gearbox and chain drive to the rotor. 540 pto driven with shear bolt protection. Fully adjustable hood. Power requiment is between 15hp and 55hp.
Stone Buriers
Built for tough conditions, the stone buriers are 540 pto driven through a Heavy Duty gearbox and chain drive to the rotor. Available with a Net Roller to control depth or with a rear adjustable hood. Working width is 85cm up to 1.25m Shear bolt protection is standard. Power requirement is between 15hp and 35hp.
